Corbin, Sullivan County

If you find errors in the data please contact Bill Caswell.

If you would like to provide information on covered bridges that no longer exist from your state, or adopt a state to work on, we would certainly welcome your assistance. Please contact Trish Kane for more information.

Inventory Number: NH/29-10-05#2
State of New Hampshire Number: 17
County: Sullivan County
Township: Newport
Town/Village: North Newport (Northville)
Bridge Name: Corbin
Crosses: Croydon Branch, Sugar River
Truss type: Town
Spans: 1
Length: 102'
Roadway Width:
Built: 1994
Builder: Arnold M. Graton Associates
When Lost: standing
Cause:
Latitude: N43 23.464
Longitude: W072 11.722
See a map of the area
Topographic map of the area
Directions: 1.8 miles north of NH11/103 and Newport on NH10, then 0.9 miles left on Corbin Rd.

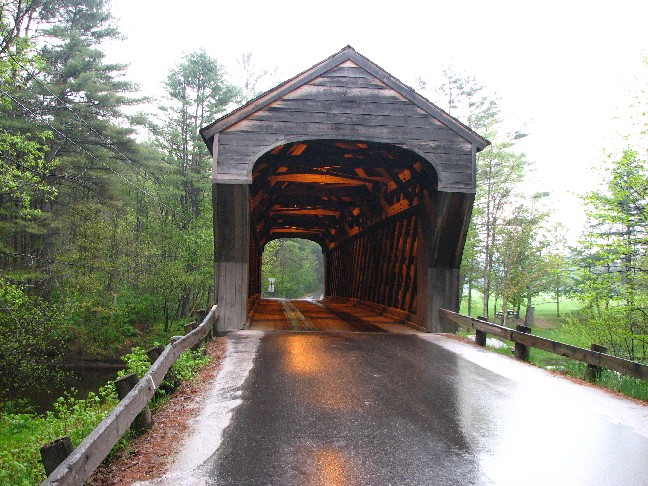

Corbin Bridge, Newport, Sullivan County, NH Built 1994
Bill Caswell Photo, October 6, 1984

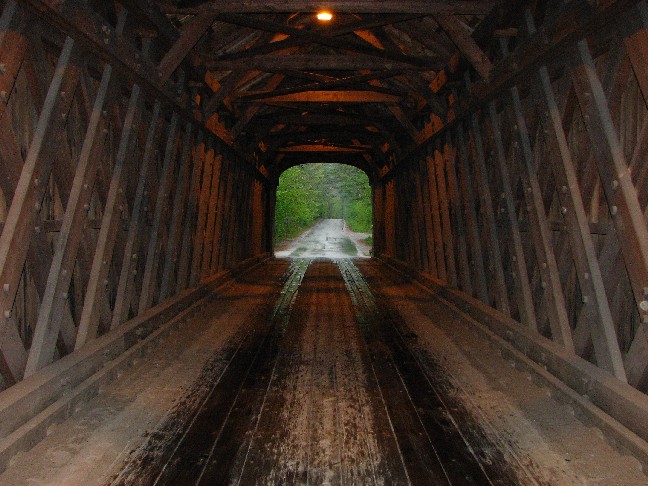

Corbin Bridge, Newport, Sullivan County, NH Built 1994
Bill Caswell Photo, May 6, 2010

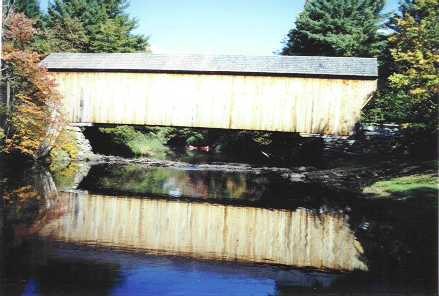

Corbin Bridge, Newport, Sullivan County, NH Built 1994
Bill Caswell Photo, January 28, 2018

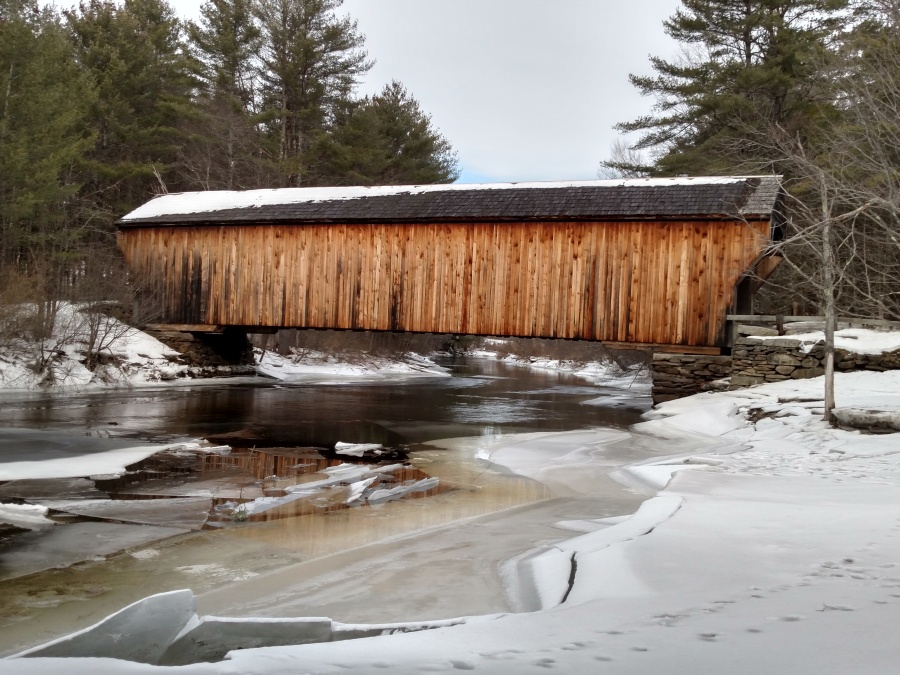

Corbin Bridge, Newport, Sullivan County, NH Built 1994
Bill Caswell Photo, May 6, 2010

Comments:
The Bridge is named for Austin Corbin who owned a large estate near the bridge. Construction on the first covered bridge at this location began in October of 1843 under the direction of Anson Warren (1803-1876). The state suggested closing the bridge in May 1979, but the town reduced the posted weight limit from six to three tons. It was rehabilitated by the state in 1980 at a cost of $43,000. The project was funded, in part, with a federal Historic Preservation Fund matching grant from the National Park Service of the U.S. Department of the Interior through the New Hampshire Division of Historical Resources. The bridge was then reposted for a six ton limit. The Corbin Bridge was listed on the National Register of Historic Places. On May 24, 1993, the Corbin Bridge was destroyed by fire. The replacement bridge was built by Arnold Graton Associates and completed on January 7, 1995. It was opened to traffic after a dedication ceremony the next day.

Sources:
National Society for the Preservation of Covered Bridges. World Guide to Covered Bridges, 2021, page 53
Chandler, Kim Varney. Covered Bridges of New Hampshire, 2022, Pages 59-63

Compilation 2026 Covered Spans of Yesteryear
