Hartford Toll, Hartford County

If you find errors in the data please contact Bill Caswell.

If you would like to provide information on covered bridges that no longer exist from your state, or adopt a state to work on, we would certainly welcome your assistance. Please contact Trish Kane for more information.

Inventory Number: CT/07-02-18x
County: Hartford County
Township: East Hartford - Hartford
Town/Village:
Bridge Name: Hartford Toll
Crosses: Connecticut River
Truss type: Burr
Spans: 6+1 pony
Length: 974'
Roadway Width: 36'
Built: 1818
Builder: Ithiel Town, Isaac Damon
When Lost: 17 May 1895
Cause: Burned
Latitude: N41 46.17
Longitude: W072 39.93
See a map of the area
Topographic map of the area
Directions: Morgan Street between Hartford and East Hartford.

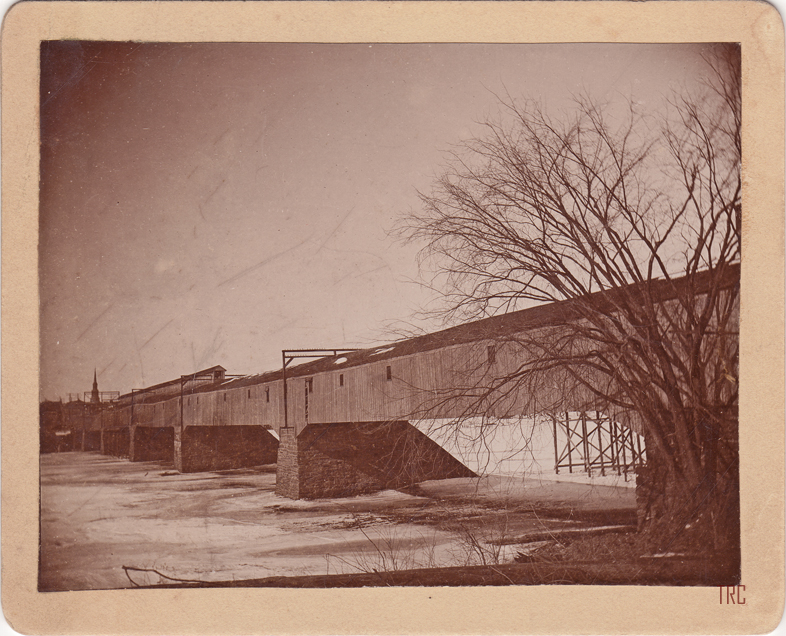

Hartford Toll Bridge, East Hartford-Hartford, CT Built 1818 Burned 17 May 1895
Richard E. Roy Collection

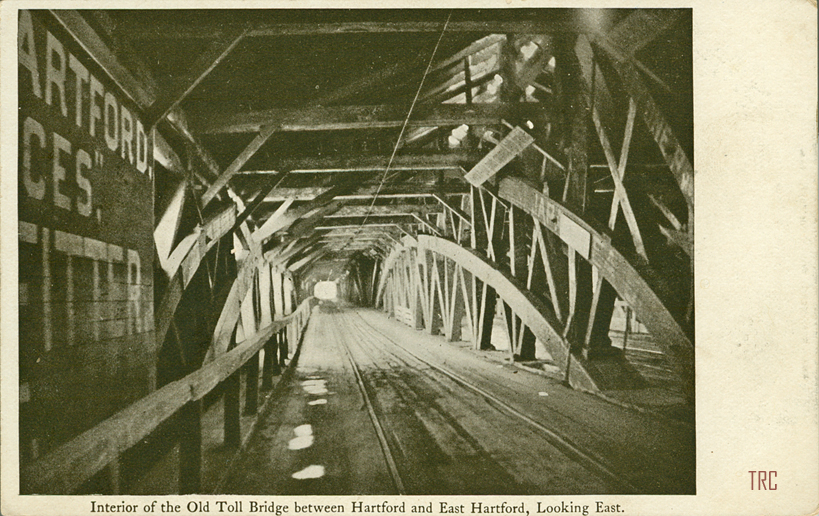

Hartford Toll Bridge, East Hartford-Hartford, CT Built 1818 Burned 17 May 1895
Todd Clark Collection

Comments:

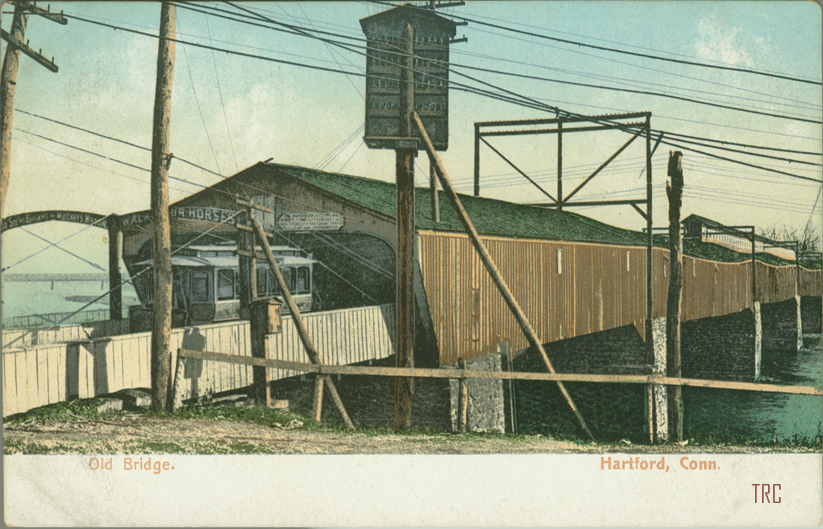

This double barrel bridge cost $40,000 to construct. A freshet in January 1839 carried away one span. Skylights were included in a cupola over spans 3 and 4 to let light into the bridge. Originally a toll bridge, it was made free on September 11, 1889. Horse-car tracks were added in 1890 and the track was electrified two years later.

Sources:
Pease, John Chauncey and John Milton Niles: A Gazetteer of the States of Connecticut and Rhode-Island, 1819, page 48
DeVito, Michael C.. Connecticut's Old Timbered Crossings, 1964, pages 7-9
Caswell, William S. Jr.. Images of America - Connecticut & Rhode Island Covered Bridges, 2011, Pages 12, 66-72
